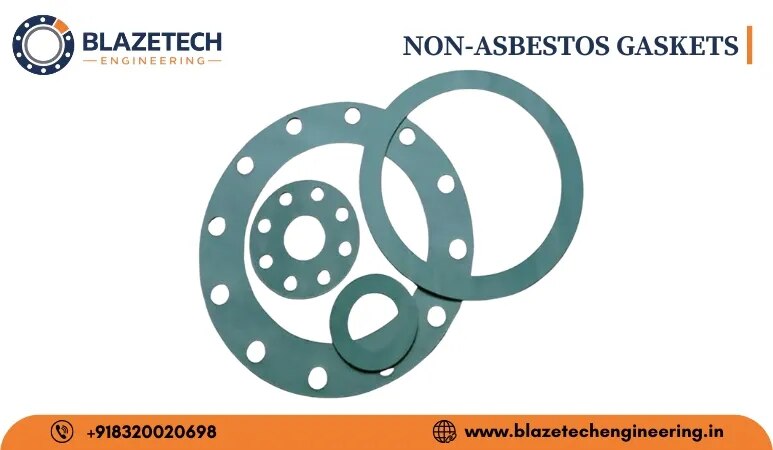

NON-ASBESTOS GASKET

Non-Asbestos Gasket Manufacturers in India.

BlazeTech Engineering is a premier Industrial Gaskets Manufacturer in India, specializing in high-performance Non Asbestos Gaskets. With years of expertise in sealing solutions, BlazeTech Engineering is recognized as a leading Gaskets Manufacturer in India, delivering top-quality, durable, and chemically resistant gaskets for diverse industrial applications.

What Are Non Asbestos Gasket Sheets?

Non Asbestos Gasket Sheets, such as Style 9006, are engineered from a blend of Aramid fibers, mineral fibers, high-quality NBR, and organic fibers. These Non Asbestos Gaskets offer exceptional sealing performance while eliminating the health hazards associated with asbestos. As a trusted Non Asbestos Gaskets Manufacturer in India, BlazeTech Engineering provides sheets suitable for water, oil, and chemical applications, catering to both light and medium load requirements.

Key Features & Specifications

• Construction: Compressed non-asbestos sheets made of Aramid fibers, mineral fibers, NBR, and organic fibers

• Size Availability: 1500×1500 mm, 1500×3000 mm, 1500×4500 mm

• Thickness: 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm

• Temperature: Peak 250°C, Continuous 180°C

• Pressure: Up to 50 Bar

• Density: 1.50 – 1.90 g/cm³

Physical Properties:

1. ASME 30 Bar

o Recovery: >98%

2. ASTM F36A

o Compressibility: 7–15%

o Recovery: >40%

3. ASTM F152 / DIN 52910

o Tensile Strength (Across Grain): 5–7 N/mm²

4. ASTM F146

o Oil & Fuel Resistance (Mass Increase): <15%

5. DIN 52911

o Ignition Loss: <40%

6. DIN 5293

o Stress Resistance: 10 N/mm²

Applications of Non Asbestos Gasket Sheets

As a leading Non Asbestos Gaskets Manufacturer in India, BlazeTech Engineering supplies gaskets for a wide variety of applications:

• Low operating pressure systems

• Transformers, compressors, and industrial apparatus

• Valve covers and pans in internal combustion engines

• Water, oil, and chemical piping systems

• Light to medium load sealing requirements

These sheets are ideal for components requiring flexibility, resilience, and easy deformability under low surface pressures.

Advantages of BlazeTech Non Asbestos Gaskets

• High resistance to oil, water, and chemicals

• Can withstand peak temperatures up to 250°C

• Excellent compressibility and recovery performance

• Safe, non-toxic, and environmentally friendly

• Custom sizes available per client requirements

Why Choose BlazeTech Engineering?

• Trusted Industrial Gaskets Manufacturer in India with years of experience

• Leading Gaskets Manufacturer in India for Non Asbestos, PTFE, and specialty gaskets

• Top Non Asbestos Gaskets Manufacturer in India, ensuring reliable and leak-proof sealing

• Tailored solutions to meet specific industrial needs

• Quality-assured, long-lasting gaskets for a wide range of applications

BlazeTech Engineering is your reliable partner for Non Asbestos Gasket Sheets, delivering superior sealing performance, durability, and safety for industrial applications.

Call Us For More Information.
